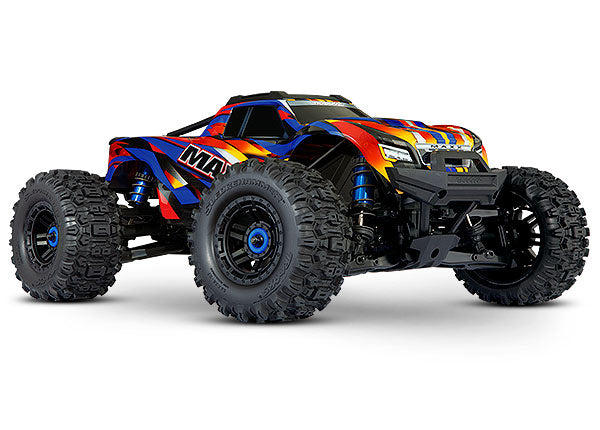

Traxxas 89086-4 Maxx w/ Widemaxx (Brushless) 1/10 scale monster truck - Yellow

Key Features

VXL-4s™ Waterproof Electronic Speed Control

• 3s–4s LiPo compatible
• Built-in cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights

Velineon® 540XL Brushless Motor

• Long format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Aluminum heat sink
• Cooling fan

Performance

• 55+ mph out of the box using a single 4s LiPo battery (sold separately)
• 60+ mph with optional gearing and a single 4s LiPo battery (sold separately)

Traxxas Stability Management®

• Helps prevent spinouts and loss of control
• Adjustable assistance from off to 100% via the transmitter

TQi™ 2.4 GHz High Output Radio System

• Traxxas Link enabled
• 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Telemetry-ready 5-channel micro receiver

---

Design & Build

Clipless Body Mount System

• Quick one-hand installation and removal
• Uses a pivoting rear latch mechanism
• Eliminates body posts and clips
• Reinforced for extra protection against tearing

Driveline

• Full-time shaft-driven 4-wheel drive
• Torque-Biasing Center Drive™ absorbs shocks and distributes power
• Sealed, silicone fluid-filled differentials with large module ring and pinion gears
• Splined outdrives attached with external thru-bolt method
• Heavy-duty Cush Drive™
• Extreme-duty telescoping driveshafts
• Splined aluminum center driveshaft

Secure Motor Mounting System

• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh
• 17 mm keyed wheel hex with 5 mm nut
• Full-length motor cradle

Modular Composite Chassis

• Extended design interlocks with front and rear bulkheads
• Absorbs and distributes impact energy
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit

Easy Battery Access

• Extended battery tray accepts 6700 mAh 4-cell LiPo battery
• Battery is protected deep in the chassis
• Battery hold-downs pivot for easy access
• More secure than conventional retention systems

Bumpers

• Tough energy-absorbing front and rear bumpers
• Lower front and rear skids for impact and abrasion resistance
• Integrated nerf bars for side impact resistance
• Wheelie bar with integrated carry handle

---

Advanced Components

Large-Scale High-Output Steering Servo

• 285 oz-in of torque
• 0.18 sec transit speed
• Triangulated mounting system to fully support case
• Heavy-duty double-shear bellcranks

Suspension

• WideMaxx® double-shear suspension arms:
  • 1.57" (40 mm) wider for improved handling
  • Tough composite formula resists impact damage, even in cold weather
• Engineered to optimize suspension travel and steering angles
• All critical suspension points have double shear strength
• 4 mm machined pivot balls
• C-hub and steering block geometry maximizes steering angle
• Fixed, high-strength camber and toe links
• Steel upper and lower tie bars

GT-Maxx® Shocks

• Machined aluminum threaded body
• Extra-large bore and capacity
• Large-diameter damper shaft
• Lower seal cartridge with dual X-rings
• Adjustable upper spring retainer
• Plastic shock caps with pivot balls
• Lower spring perches bolted on

Wheels/Tires

• Tough 2.8" wheels with keyed 17 mm hex receptor
• Sledgehammer® extreme tires for sure-footed traction
• 1-piece foam inserts
• Pre-glued and ready for action
• TSM® rated

Full Contact Sealed Bearings

• Used in exposed locations for enhanced durability

Needed to Complete:

• 3s or 4s Lipo Battery
• Battery Charger
• (4) AA Batteries

---

Specifications

• Name: Maxx
• Type: Monster Truck
• Speed: 60+ mph with 4s LiPo battery and optional gearing
• Skill Level: 4
• Scale: 1/10
• Weight: 10.40 pounds (4.7 kg)
• Length: 22.50 inches (572 mm)
• Width: 15.95 inches (405 mm)
• Front Track: 15.95 inches (405 mm)
• Rear Track: 15.95 inches (405 mm)
• Height: 9.12 inches (232 mm)
• Wheelbase: 13.85 inches (352 mm)
• Center Ground Clearance: 2.6 inches (67 mm)
• Driveline: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Ratio (Internal): 12.37:1
• Gear Pitch: 1.0 metric pitch
• Steering Servo: 2090 digital high-torque waterproof (285 oz-in)
• Radio System: TQi™ 2.4 GHz transmitter with TSM® receiver
• Battery Compartment Specs: 186 mm x 48 mm x 43 mm
