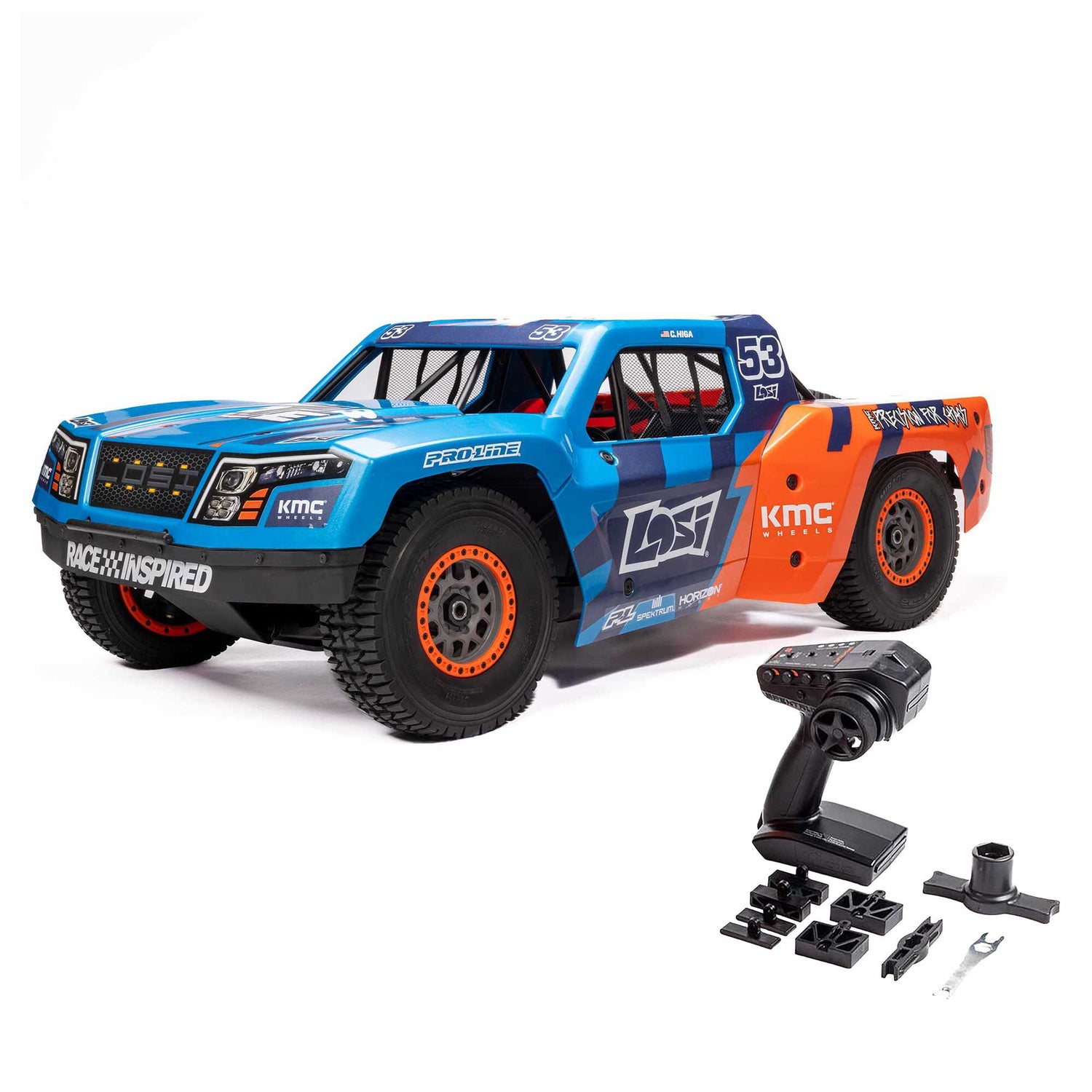

5IVE-TE 3.0 1/5 Electric 4wd Desert Truck RTR

Losi 1/5 5IVE-TE RTR Overview

When Losi introduced the 5IVE-T in 2011, it revolutionized large-scale RC by giving enthusiasts what they didn’t even know they wanted: a 4x4 large-scale truck built with the same legendary engineering DNA as the dominant 1/8-scale 8IGHT platform. Easy to work on, powerful, and proven, the 5IVE-T immediately set the benchmark for large-scale performance. Now, over a decade later, Losi raises that benchmark to unprecedented heights with the all-new 5IVE-TE 3.0.

Power System

The 5IVE-TE 3.0 is built around one astonishing centerpiece: the new 12S Spektrum power system, the most powerful factory-installed system Spektrum has ever created for a surface vehicle.

• 560Kv 70120 brushless motor paired with a 250-amp Smart ESC delivers blistering 50+ mph speeds on 12S LiPo power.
• Dual 40mm fans cool the motor, while an aluminum heatsink manages the incredible 50.4 volts of raw power.
• For a more comfortable experience, simply run 8S batteries for thrilling 35+ mph performance.

Wheels and Tires

The 5IVE-TE 3.0 rides on visually striking, officially licensed KMC KM549 wheels with Pro-Line Racing Pro-Loc bead lock system technology, making tire changes effortless and cost-effective.

• Massive 8.5-inch Pro-Line Mirage TT tires feature an aggressive, realistic tread design with desert truck-style sidewall ribs for exceptional support and control across varied terrain.

Body Design

To handle the punishment that 12S power and aggressive driving deliver, Losi engineered an entirely new injection-molded polypropylene body design.

• Six body panels flex to absorb impacts, maintain uniform thickness to eliminate weak spots, and make replacement far more manageable and affordable.

Wheelbase and Drivetrain

A longer wheelbase maintains the massive wheels, tires, and body in perfect visual proportion while dramatically improving straight-line stability at speed.

• The drivetrain enhances strength, efficiency, and driveshaft durability.
• Optimized gearing, featuring a new 43/12 ring and pinion with a 67-tooth spur, transforms how this beast accelerates and performs with its increased size and tire diameter.

Suspension and Handling

The suspension receives equally impressive upgrades:

• 32mm big-bore shocks handle significantly more oil volume for improved damping performance under the weight and forces of the larger platform.
• Tapered pistons increase pack while creating a more controlled, quicker rebound for superior traction.
• Redesigned front and rear suspension arms feature material added around shock mounting locations for uniform thickness and enhanced durability.
• Corrected shock geometry optimizes shock angles from the tower to the arm.

Steering and Maintenance

An all-new easy-access center differential mount simplifies maintenance.

• Spektrum’s metal-top large-scale servo delivers an astounding 1,000 oz/in of torque, keeping this massive truck pointed precisely where you want it.
• The metal top case keeps gears perfectly aligned while acting as a heatsink to draw heat away from the servo motor, enhancing both performance and longevity.

Transmitter and Receiver

The included Spektrum DX3 Smart transmitter meets the needs of both newcomers and experienced large-scale enthusiasts.

• Throttle limiting function allows novice drivers to restrict the top speed to 50% or 75% until they’re ready to experience the 5IVE-TE 3.0’s full potential.
• When using Smart batteries, the transmitter’s battery level indicator shows real-time capacity.
• The SR6200A DSMR receiver includes AVC (Active Vehicle Control) technology to increase stability on challenging terrain, while Smart Technology compatibility provides real-time telemetry data.

The Losi 5IVE-TE 3.0 is ready to dominate right out of the box. Add your choice of 8S or 12S battery packs, pick a compatible charger, and prepare to experience the largest, fastest, and most powerful 5IVE-T to date.

Losi 1/5 5IVE-TE RTR Features

Power and Electronics

• Spektrum Firma 250A Smart brushless ESC (6S-12S capable)
• Spektrum Firma 560Kv 70120 brushless motor with 8mm shaft
• Dual 50mm cooling fans with aluminum motor heatsink
• 1,000 oz/in metal-top, 15T large-scale steering servo

Wheels and Tires

• Officially licensed KMC KM549 wheels with Pro-Line Pro-Loc bead lock system
• Massive 8.5” Pro-Line Mirage TT tires with desert truck sidewall ribs

Body and Chassis

• Injection-molded polypropylene body panels (6-piece design)
• Longer wheelbase for improved stability and scale proportions
• All-new straightened center drivetrain for maximum efficiency

Suspension and Gearing

• Easy-access center differential mount design
• Optimized gearing: 43/12 ring and pinion with 67T spur
• New 32mm big-bore shocks with tapered pistons
• Redesigned suspension arms with reinforced shock mounting locations

Transmitter and Receiver

• Spektrum SR6200A 6-channel DSMR receiver with AVC technology
• Spektrum DX3 Smart DSMR transmitter with throttle limiting
• Smart battery telemetry on transmitter display

Additional Features

• 1/5 scale 4WD drivetrain
• Ready to run, only batteries and charger required

Specifications

• Approximate Assembly Time: Less than 1 Hour
• Battery: Sold Separately
• Charger: Sold Separately
• Chassis: 6061-T6 Aluminum
• Completion Level: Ready-To-Run
• Connector Type: IC5
• Differential: Gear
• Drivetrain: 4WD
• Final Drive Ratio: 14.12
• Internal Gear Ratio: 3.58
• LiPo Compatibility: 8S, 12S
• Max Battery Dimensions: 180 x 52
• Motor Size: 560Kv
• Motor Type: Brushless
• Pinion: 17T
• Power Type: Electric
• Product Height: 15.4" (391 mm)
• Product Length: 42.9" (1090 mm)
• Product Weight: Without Battery: 51.4 lbs / With Recommended 2 6S 7200mAh Battery: 55.7 lbs
• Product Width: 21.2" (538 mm)
• Radio: Included
• Receiver: Included
• Scale: 1/5
• Servos: Included
• Shock Type: Big Bore Oil-Filled
• Spur Gear: 67T
• Tire Tread: Mirage TT tire
• Top Speed: 50+
• Vehicle Type: Desert Truck
• Wheel Hex Size: 24mm
• Wheelbase: 26" (660 mm)
