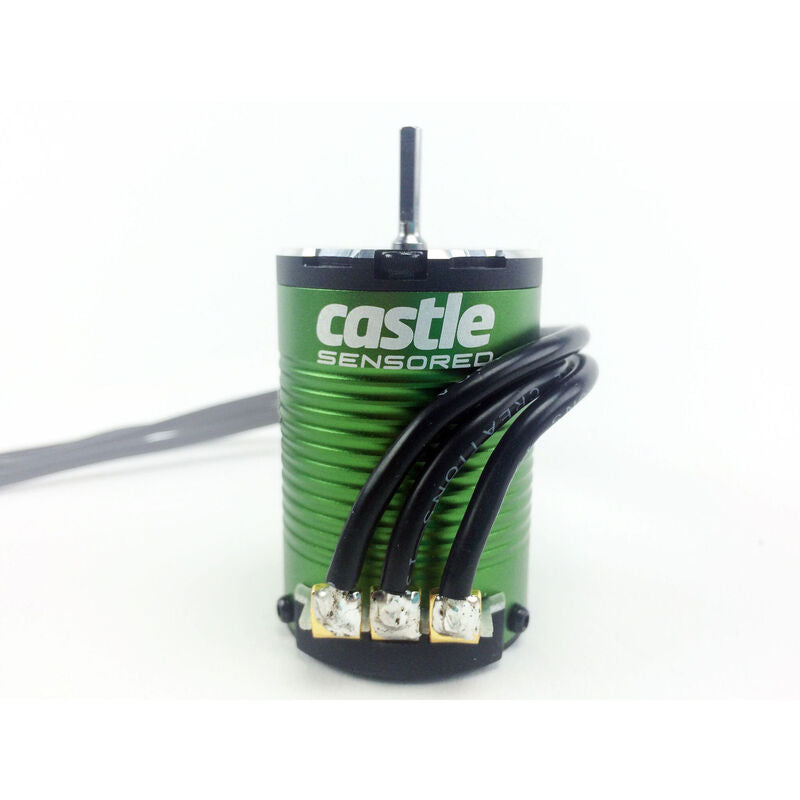

Castle Creations 4-Pole Sensored BL Motor,1410-3800Kv,5mm 060006600 - CSE060006600

Castle Creations 1410 Sensored 4-Pole Brushless Motors bring together rotor position sensor technology and an advanced motor design to deliver exceptional performance. Experience ultra-smooth startup, precise low-speed control, predictable power delivery, incredible torque, and lightning-fast response. With Castle's Smart Sense technology, the ESC always knows the rotor's position, eliminating cogging or startup inconsistencies. This enables PRECISE throttle control, BUTTERY SMOOTH starts, and the RAW POWER and LONGER RUN TIMES that Castle motors are renowned for.

EFFICIENCY IS KEY

• Higher efficiency means more power without overheating, allowing for higher gear ratios.
• Efficient motors consume less power for the same output, enabling longer run times on a single charge.
• Less energy turns into heat, keeping the motor cool under extreme loads.
• Efficiency equals performance, ensuring optimal output and durability.

RELIABILITY CAN’T BE IGNORED

Castle engineers designed this motor to withstand the harshest RC conditions:

• Oversized NMB bearings and a vibration-dampening system for extended bearing life.
• High-strength neodymium sintered magnets with a Kevlar wrap to maintain rotor integrity under stress.
• Proprietary winding techniques ensure a low-resistance stator assembly, leading to cooler operation.
• Careful component selection, verified through rigorous internal testing, ensures unmatched quality, performance, and reliability.

A cooler motor lasts longer, and this robust design guarantees exceptional durability and efficiency.

INTEGRATED SOPHISTICATION

Pair this motor with a Castle Creations sensor-supported ESC (e.g., MAMBA MICRO X, MAMBA MAX PRO, or MAMBA MONSTER X) to unlock advanced tuning capabilities through Castle Link. With a Castle sensored ESC and motor, you'll achieve the ULTIMATE POWER PLANT for your vehicle.

SMARTSENSE™

Castle's SMARTSENSE technology ensures:

• Smooth starts, excellent torque, and superior low-speed drivability using motor sensors.
• A seamless transition to Castle’s ULTRA-EFFICIENT sensorless mode once the motor is running.
• Electronic timing adjustments for peak performance across all driving conditions, combining the benefits of smooth sensored startups with high-efficiency sensorless operation.

Features

• 4-POLE 12-SLOT design for exceptional EFFICIENCY and reduced heat generation.
• Oversized gold-plated solder tabs for LESS RESISTANCE and easy soldering.
• QUIETSENSE™ Technology to shield magnetic field noise and maintain ESC-motor synchronization.
• HIGHER PRECISION and MORE EFFICIENT startups.
• Optimized design eliminates the need for mechanical timing adjustments.
• Sensor alignment method ensures uniform timing and torque in both directions automatically.
• REBUILDABLE design for easy replacement of front-end bell bearings or rotors with shafts.
• ROAR standard sensor port and labeled connections.
• High-strength 180°C neodymium sintered magnets.
• High-quality, temperature-stabilized sensors.
• High-purity, high-temperature copper windings.
• Hardened stainless steel shaft.
• 13 AWG high-strand wire with silicone insulation.
• Kevlar-wrapped rotor.
• 6061-T6 Billet aluminum heatsink can.
• High RPM NMB oversized bearings.
• High-quality 0.2mm steel laminations.
• Low-resistance gold-plated bullet connectors.

Specifications

• Input Voltage Range: 2-3S LiPo
• Kv: 3800
• Max. RPM: 100,000
• Length: 52.7mm
• Diameter: 36mm
• Weight (w/wires): 239g / 8.4oz
• Shaft Length: 21mm
• Shaft Diameter: 0.197" (5mm)
• Mounting Hole Specifications: M3 @ 25mm
• Cooling Fan: Optional (not included)
• Connectors: 4mm male Castle Bullet Connectors

Application Guidelines

• Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (2S).
• Suitable for 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S).

Recommended ESC(s)

• Mamba Max Pro
• Mamba X
• Monster X
