Castle Creations Sidewinder SW4 Waterproof 1/10 ESC/Motor Combo w/1410 (3800kV)

The Castle Sidewinder SV4 12.6V Waterproof 1/10 ESC builds upon Castle’s most popular platform, the Sidewinder 1/10 series. The ESC is the first of its kind to run Castle’s CRYO-DRIVE technology, combining cutting-edge hardware and software advancements to increase thermal performance. Cooler temps mean longer runs and more power! The Sidewinder 4 is a versatile ESC and is a great choice for short course, on-road, and monster truck applications when paired with the correct motor, as well as rock crawlers when used in brushed mode.

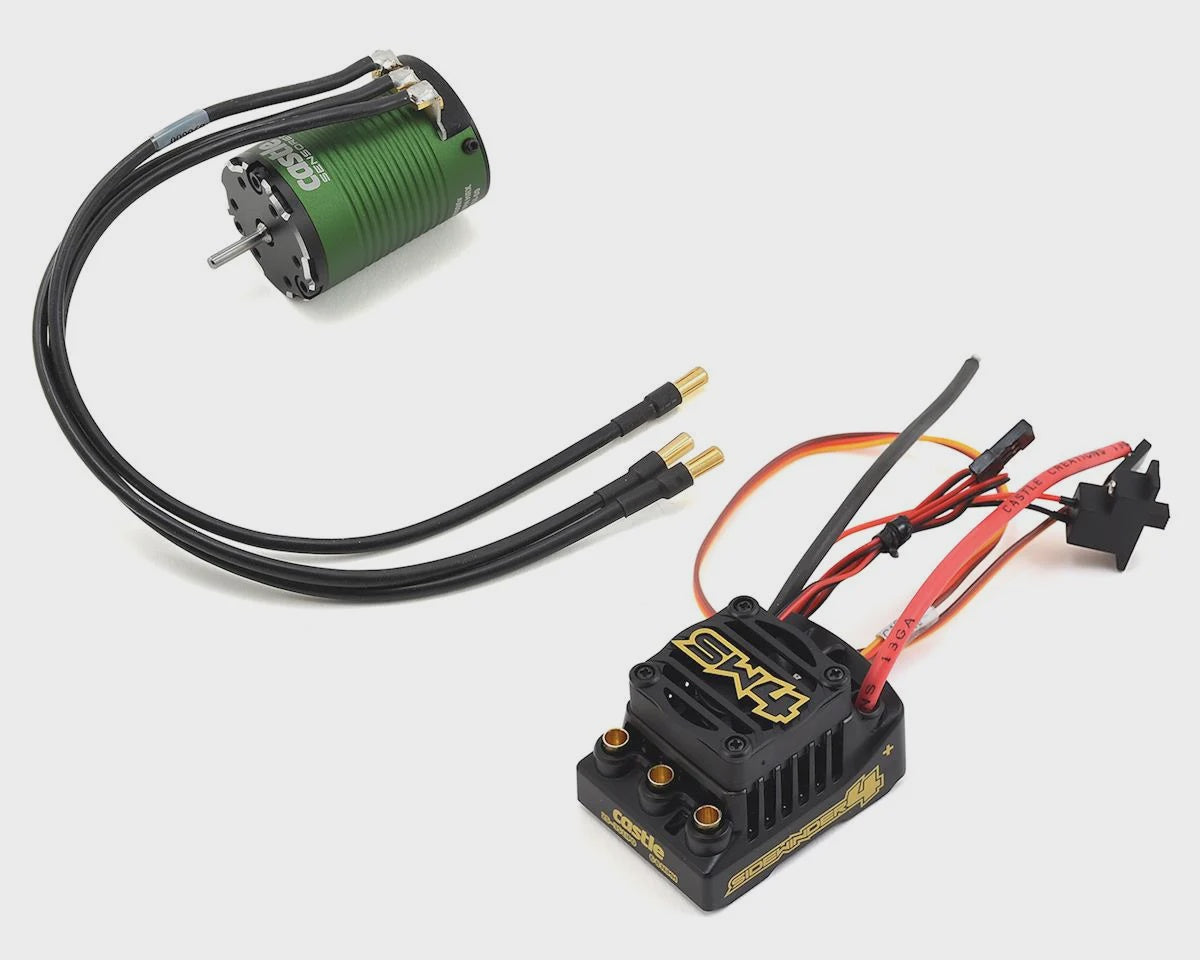

This combo includes a Sidewinder 4 ESC and 1410-3800Kv sensored motor. The 1410-3800Kv motor is ideal for short course trucks running on 2s LiPo and weighing up to 6.5 lbs. It can also be run on a 3s LiPo with very conservative gearing. It is a cool-running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.

Features

• 2s - 3s LiPo; 6 - 8 cell NiMH use in vehicles up to 6.5lbs with battery, ready-to-run.
• Sensorless brushless and/or brushed motor operation.
• Waterproof design ESC and splash-resistant 30mm fan (*).
• 5.0 volts fixed, 2 amps Peak BEC.
• Audible alerts for error conditions.
• Enhanced drag brake functionality.
• Smoother sensorless startups.
• Convenient transmitter programming for six common adjustable settings.
• Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately) or via Field Link Card (sold separately).
• Telemetry Link compatible for Futaba® S.BUS2 (sold separately).

Specifications

• Input Voltage Range: 2s - 3s LiPo; 6 - 8 cell NiMH.
• BEC Specifications: 5.0 volts fixed, 2 amps.
• Operating Environment: Waterproof* design allows for use in nearly any environment.
• Brake: Proportional.
• Reversible: Yes, but may be disabled for racing.
• On/Off Switch: Yes.
• Cooling Fan: 30mm fan included.
• ESC Size: 2.08x1.50x1.28" (52.92x38.05x32.56mm).
• ESC Weight (w/wires): 2.26 oz. (64 g).
• Connectors: 4mm female bullets for motor connection.
• Items Needed for Operation: Brushless or brushed motor, battery connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.

Application Guidelines

The Sidewinder 4 is a versatile ESC that can be used in a wide variety of applications. It can be paired with any 14xx series 4-pole brushless motors and can also be used in a rock crawling application with a brushed motor down to a 19 turn.

• Max. Recommended Vehicle Weight: No more than 6.5lbs with battery, ready-to-run.
• Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
• Telemetry Link Capable: Yes.

Product Use Statements

Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid. It can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt.

While the controller may be waterproof, Castle recommends users confirm that the rest of their vehicle, including the batteries, servos, radio, and chassis, are also waterproof before exposing them to liquids of any kind.
