EcoPower  |  Sku: ECP120T

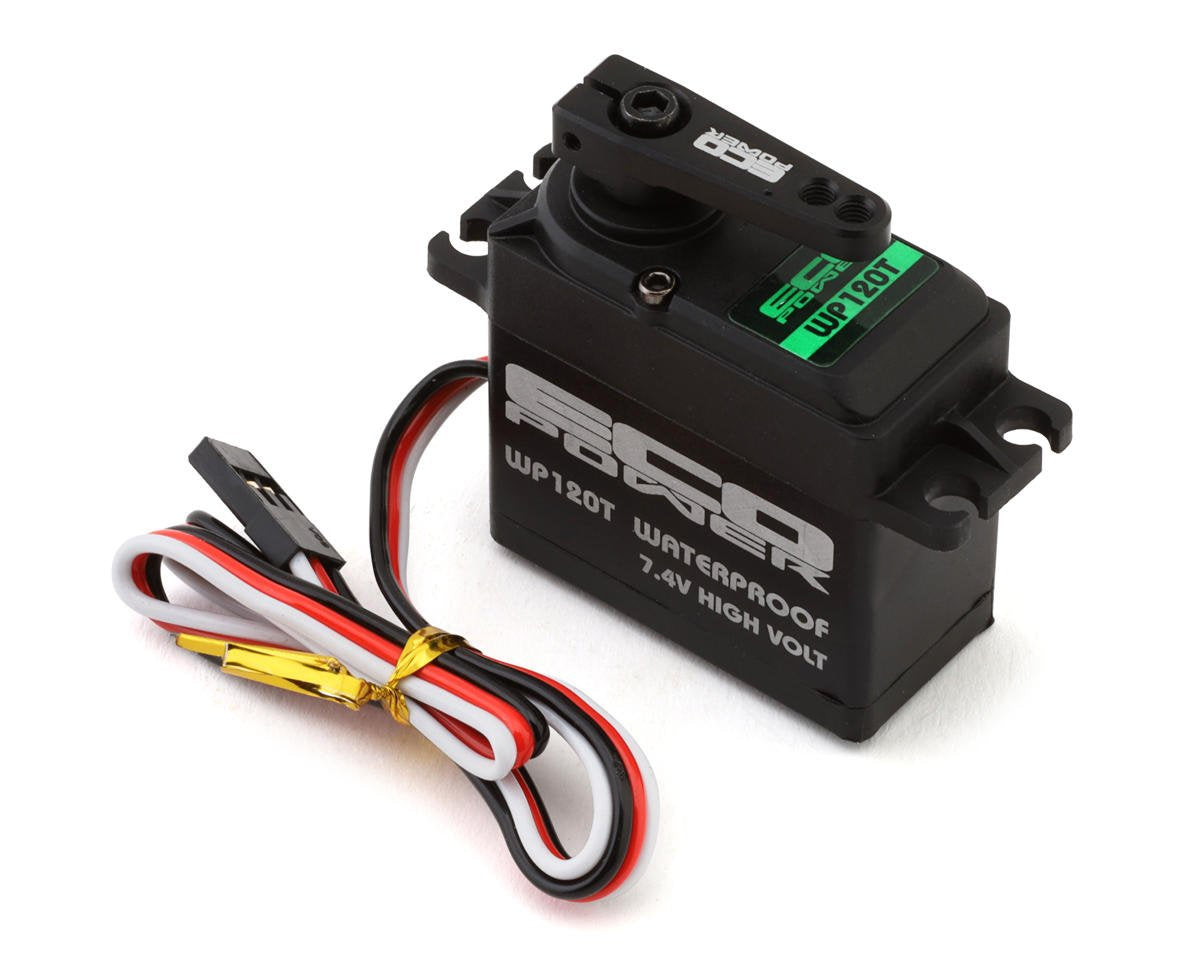

EcoPower ECOPOWER WP120T CORELESS WP HT SERVO - ECO120T

$6499

Features:

  • Includes one aluminum clamping servo horn
  • Affordable option for 1/10 monster truck, 1/10 2WD and 4WD buggies, trucks, boats and more!
  • Waterproof up to 1 meter
  • 337 oz-in of torque and .11 transit speed @ 6.0V
  • 400 oz-in of torque and .09 transit speed @ 7.4V
  • Digital circuitry
  • Coreless motor
  • Metal gears
  • Lightweight plastic upper and lower case w/black anodized aluminum center case
  • Dual ball bearings
  • 220mm servo lead
  • Includes plastic star, 4 way, dual, single and round type servo horns and mounting hardware
  • 1 Year warranty against manufacturer defects*
*NOTE: Warranty does not cover stripped gears or damage caused by abuse.







Servo Model
WP120T
Recommended Application 1/10 Scale Surface
Waterproof Yes
Operating Voltage 4.8 - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.11/60° sec
Operating Speed @ 7.4V 0.09/60° sec
Dynamic Torque @ 6.0V 337 oz-in (24.4 kg-cm)
Dynamic Torque @ 7.4V 400 oz-in (28.8 kg-cm)
Motor Type Coreless
Output Shaft 25 Tooth
Gears Full Metal
Weight 53g
Pulse/Frequency 1520?s / 333hz
