Futaba  |  Sku: FUT01102396-3

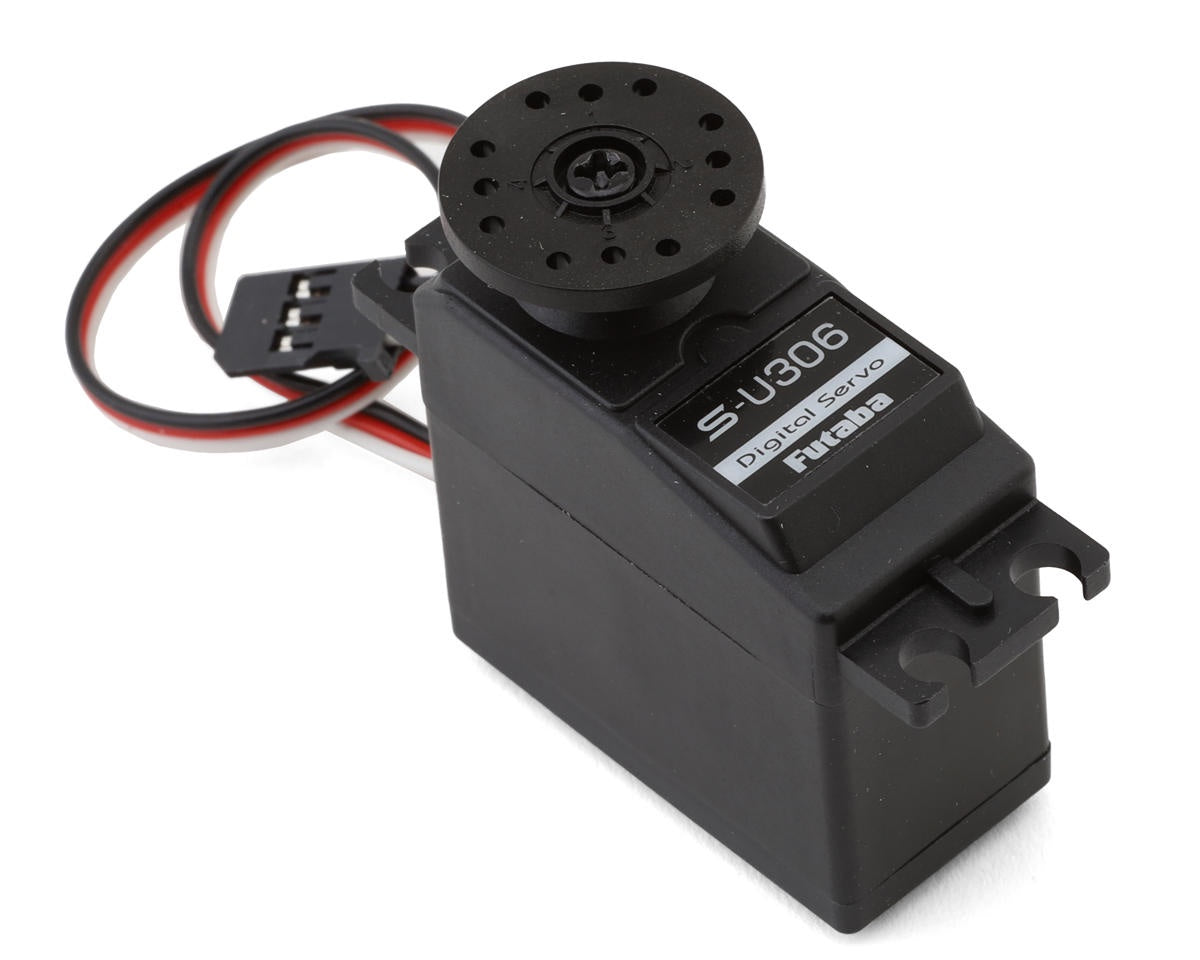

Futaba S-U306 Digital Standard Servo


$5799


S-U306 Servo Overview:

This is the Futaba S-U306 Digital Standard Servo. Designed for cars and airplane applications in need of a high quality budget digital servo. Features an all-metal gear design with a durable composite case, this S-U306 is capable of putting out 123.6oz-in of torque at a speed of 0.18sec/60° while operating at 6V! Get the S-U306 digital standard servo to enhance performance and durability at a budget-friendly cost!



Features

  • Standard Digital
  • All metal gears
  • High quality composite case
  • Budget friendly
  • Perfect for cars and airplanes
  • -60 to +60 degree output angle

Specifications:

  • Speed:
    • @4.8V: 0.23sec/60°
    • @6.0V: 0.18sec/60°
  • Torque:
    • @4.8V: 98.6oz-in (7.1kg-cm)
    • @6.0V: 123.6oz-in (8.9kg-cm)
  • Dimensions: 1.57x0.79x1.50" (40x20x38.1mm)
  • Weight: 46.5 g
  • Operating Voltage: 4.8-6.0V
  • Operating Spline: 25T
  • Application: Cars/Airplanes

Includes

  • (1) S-U306 Digital Standard Servo
  • Composite Servo arms with mounting hardware
