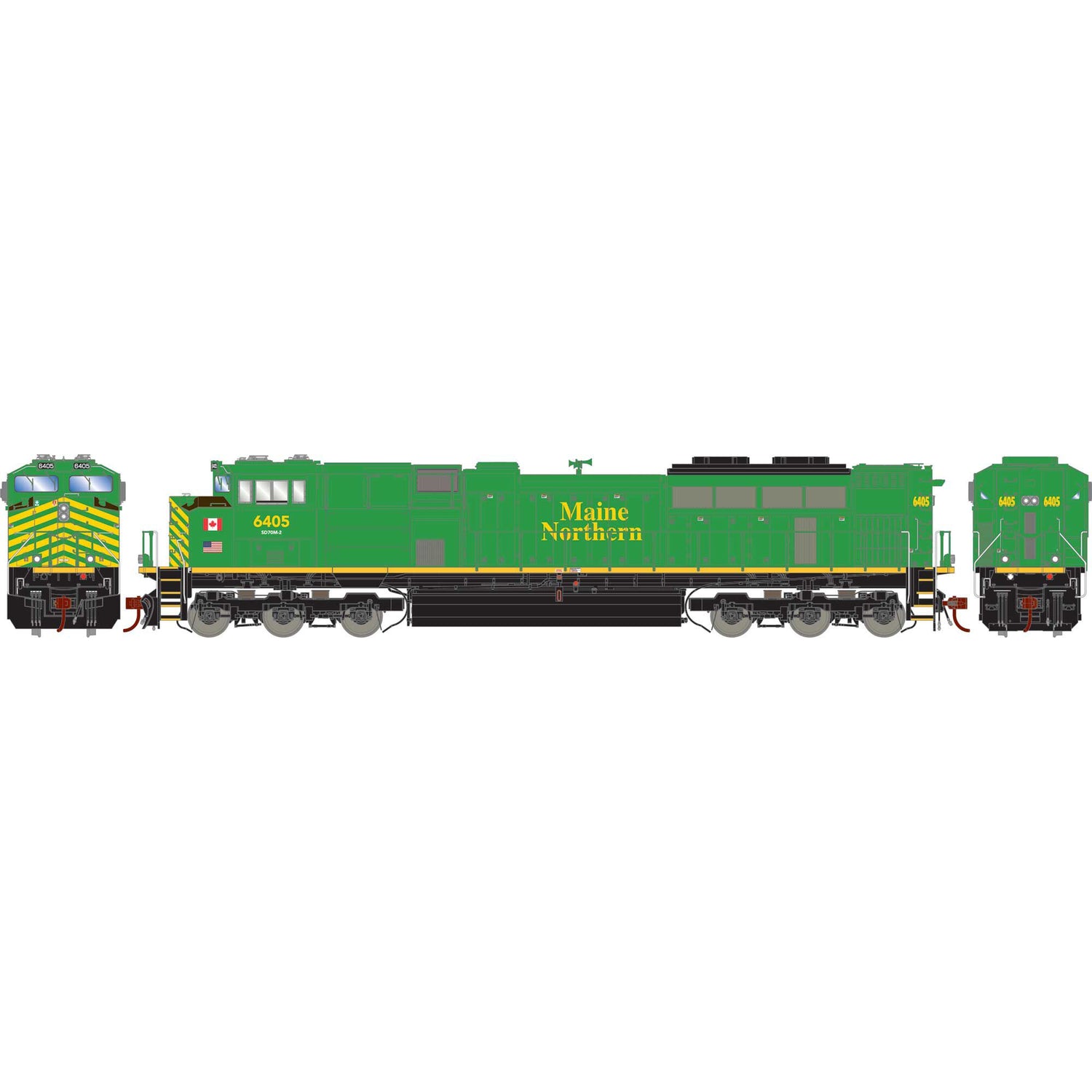

Athearn Genesis HO SD70M-2, Maine Northern NBSR #6405

Prototype Specific Information

To comply with stricter diesel locomotive emissions standards imposed by EPA Tier II regulations, EMD developed the SD70ACe and SD70M-2 by modifying the SD70MAC. Both models are powered by a 16-cylinder, 4300-horsepower diesel engine.

• SD70M-2: The prime mover drives an alternator, producing AC current that is rectified to DC current, which powers the traction motors.
• SD70ACe: The DC current is further "chopped" back into AC to power the traction motors.

The external design of the SD70M-2 is heavily influenced by the SD90 series locomotives, featuring:

• Full-height nose door and rectangular windshields.
• Large flared radiators with two fans.
• Dynamic brake equipment positioned at the rear of the long hood.
• Inverters relocated to a box on the walkway behind the fireman’s side of the cab.

SD70ACe Series Locomotive Features

• Flexible rubber trainline hose
• Flexible rubber MU hoses
• Etched see-through steps
• Lift rings
• Lit Number Boards & Truck Lights
• Sander lines
• Minimum radius: 18”
• Recommended radius: 22”

Genesis Diesel Locomotive Features

• Trainline hose
• See-through cab windows
• Full cab interior
• Walkway tread
• Windshield wipers
• Wire grab irons
• DCC-ready features with Quick Plug™ plug-and-play technology and 21-pin NEM connector.
• Fine-scale Celcon handrails for a realistic appearance.
• Detailed fuel tank with fuel fillers, fuel gauges, breather pipes, and retention tanks.
• Body-mounted McHenry® operating scale knuckle couplers.
• Genesis driveline with a 5-pole skew-wound motor, precision-machined flywheels, and a multi-link drivetrain for smooth operation.
• All-wheel electrical pickup for reliable current flow.
• Wheels with RP25 contours that operate on all popular brands of track.
• LED Lighting for dependable performance.
• Heavy die-cast frame for enhanced traction and pulling power.
• Scaled from prototype resources, including drawings, field measurements, and photographs.
• Accurately-painted and -printed paint schemes.
• Fully-assembled and ready-to-run.
• Secure packaging for safe storage.
• Coupler cut levers.
• MU hoses.

Specifications

• Axles: 6
• DCC: Ready/21-Pin NEM
• Era: 2010-Present Day
• Full Road Name: New Brunswick Southern Railway
• Lighted: LED
• Lighting: LED
• Lights: LED
• Minimum Radius: 18" (457 mm)
• Prototype Manufacturer: EMD
• Reporting Mark: NBSR
• Scale: HO
• Sound: Ready
• Sub Brand: GENESIS
