Hobbywing Combo MAX10 G2 140A&3665SD 3200KV G3

Features

• The EzRun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of control feel, perfectly matching the EzRun 3652/3665 SD G3 motors.
• Supports Turbo timing adjustment of up to 32 degrees; when combined with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
• Smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will remain off to reduce noise and save power. The fan will only activate when the temperature rises to a certain level.
• Compared with the previous generation of the MAX10 ESC:
  • Total capacitance of the capacitor is increased by 74%.
  • Overheating protection prevents overloading and capacitor explosions.
  • Improved power delivery from the battery to the ESC.
• Smart freewheeling technology enables the MAX10 G2 to achieve higher drive efficiency than the previous generation, resulting in lower operating temperatures—approximately 25°C lower than the previous generation.
• By connecting the ESC with the OTA BT module, you can:
  • View real-time data (throttle amount, voltage, current, temperature, speed, etc.) through the mobile app.
  • Access data logging to review the history of the running status.
• The IP-67 waterproof system guarantees excellent waterproof and dustproof protection, allowing the power system to drive on various surfaces, including mud, sand, ice, snow, and water, without damaging the unit.

Specifications:

• ESC:
• Continuous Current: 140A
• Burst Current: 880A
• Battery: 2-4S Lipo
• Built-in BEC: 6V/7.4V @ 5A(Switch-mode)
• ESC Programming: Independent programming port
• Motor Supported: Sensor and sensorless brushless motor
• Motor Limit:
• 3S Lipo: Kv <4000 3665 size motor
• 4S LiPo: Kv <2600 4268 size motor
• Application: 1/10 4X4 Short Course, Truck, Monster Truck
• Cooling Fan: Powered by BEC
• Size: 53x39.5x37.2mm (LxWxH)
• Weight: 120g (Including weight of wire)
• Motor:
• LiPo: 2-3S
• Motor Kv: 3200
• No-load Current: 7.1A
• Diameter: 37mm
• Length: 65.8mm
• Shaft Diameter: 5mm
• Shaft Length: 16.5mm
• Pole: 4
• Weight (g): 304.5

Includes:

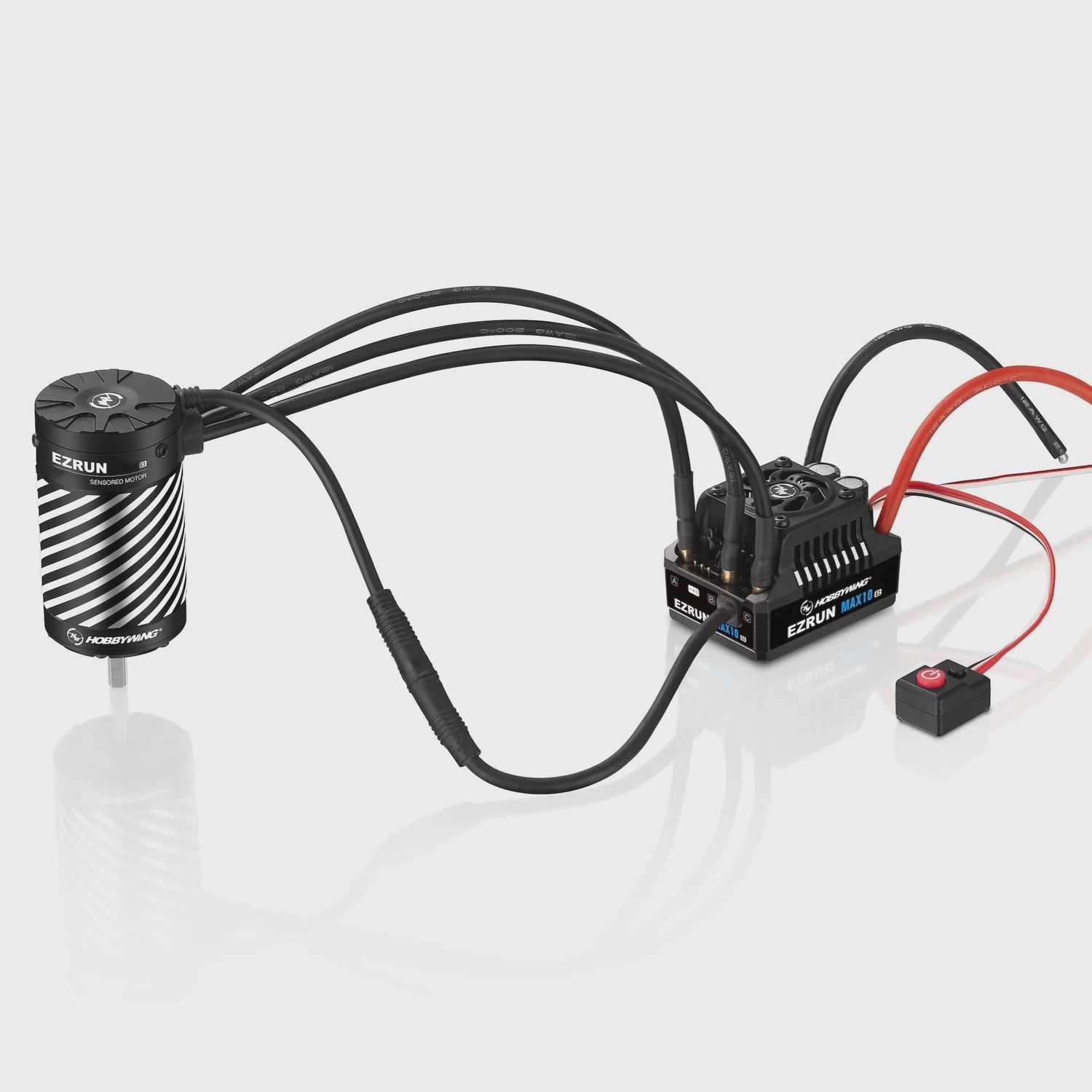

• (1) EZRun MAX10 G2 140 Amp Sensored Brushless Waterproof ESC with XT60 Plug
• (1) EZRun 3665SD G3 Sensored Brushless Motor
• Sensor Cable
