Kadee  |  Sku: 380-1745

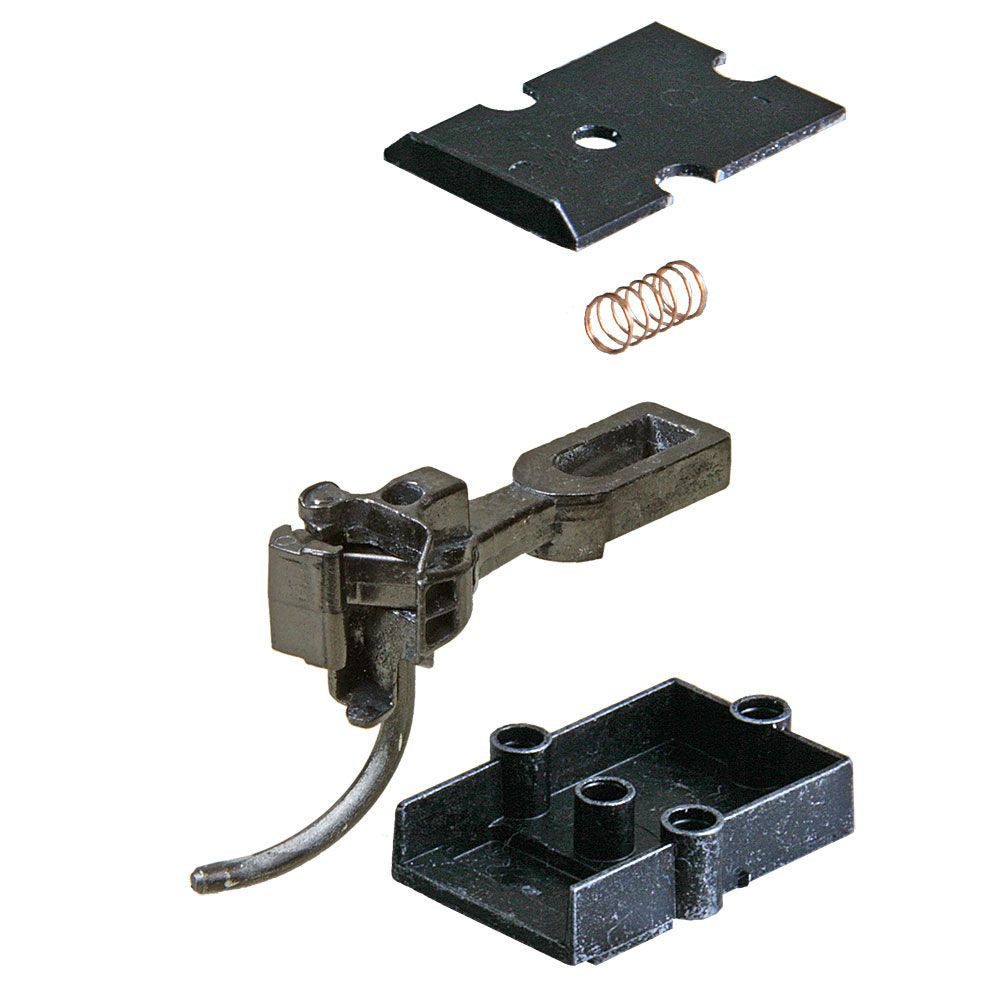

Kadee #1745 O Scale "SBE" Bottom Shelf Medium Centerset Metal Couplers with Plastic Gearboxes

$1499

#1745 Type "SBE" Bottom Shelf Medium Centerset Metal Couplers with Plastic Gearboxes - Black - O Scale



O Scale      MAGNE-MATIC



This industry leading coupler features New Generation AAR Type "SBE" Bottom Shelf Medium Centerset Metal Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids. The #1745 Metal Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

#1745 Coupler Instructions

Two pair per package

UPC: 765484017455

USA Flag  Made in the U.S.A.

O-Scale

New Generation AAR Type "SBE" "Prototype" Head:

  • Simple Drop in Design
  • Trouble Free Operation
  • Hidden Knuckle Spring
  • AAR Type "SBE" Bottom Shelf Coupler Style
  • Compatible with Kadee® O-Scale Couplers
  • World-Renowned Quality & Performance
  • They just Last & Last & Last...

Package Includes:

  • (4) Each #1745 Type "SBE" Bottom Shelf Metal Couplers - Medium Centerset Shank
  • (4) Each #817 Plastic Gearboxes & lids
  • (5) Each #850 O Scale Centering Springs



#1745 Type "SBE" Bottom Shelf Metal Coupler Features:
Material  -   Metal
Shank Length  -   Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset  -   Centerset
Centering Spring  -  #850 O Scale Centering Springs
Head  -   New Generation AAR Type Type "SBE" Bottom Shelf Head
Works In Place of  -   #740, #800, #801, #804, #805, & #816 O Scale Medium Centerset Shank Couplers
Works With  -   #817, #818, #819 Draft Gearboxes



#817 Plastic Draft Gearboxes & Lids Features:
Material  -   Plastic
Dimensions  -  25/32"L x 1/2"W x 7/32"H
Works With  -   #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers



Mounting Specifications:
Mounting Height  -   25/32"
Centerline  -   1 1/16"
Trip Pin Height  -   1/16"
Mounting Holes  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)
  • Scale
    O Scale
