Proteck RC 160T Low Profile High Torque Metal Gear Servo High Voltage/Metal Case - PTK160T
Proteck RC 160T Low Profile High Torque Metal Gear Servo High Voltage/Metal Case - PTK160T

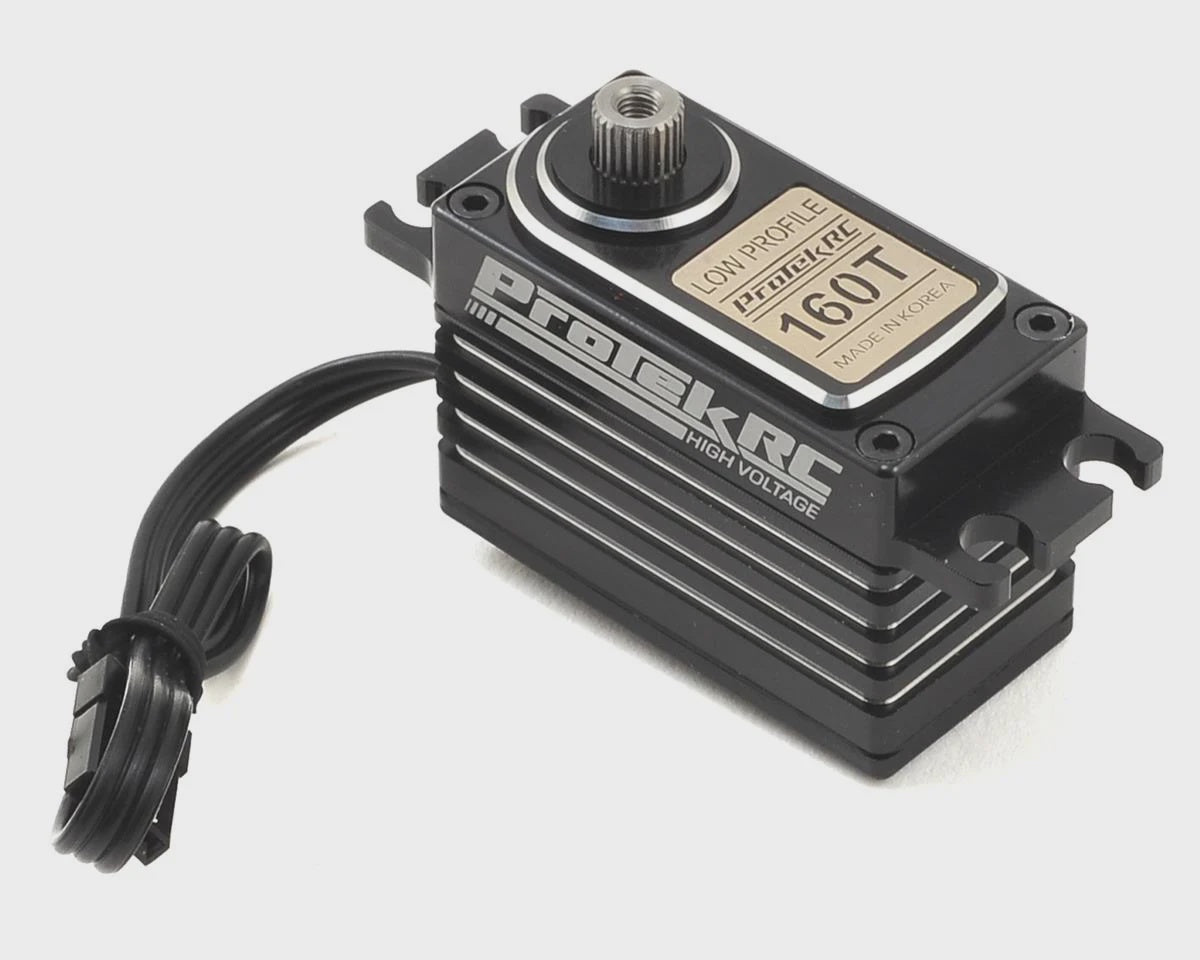

This is the ProTek R/C 160T Low Profile Digital "High Torque" Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high-quality servos that exceed expectations at every level. With features that meet or surpass what the competition offers, ProTek R/C servos deliver performance and unmatched value, backed by industry-leading customer support.
Performance Highlights
The ProTek R/C 160T High Voltage Low Profile Servo offers incredible torque and speed capabilities:
- At 6.0V: 216 oz-in of torque and 0.08 transit speed.
- At 7.4V: 274 oz-in of torque and 0.06 transit speed.
These specs make it an excellent choice for any 1/12 to 1/10 scale vehicle application.
Key Features
- Low-profile case: Saves space and reduces weight.
- Full aluminum case: Provides bomb-proof durability and improved heat dissipation.
- Metal gear train: Supported by dual ball bearings for smooth operation.
- Coreless motor: Ensures high efficiency.
- 160mm long 22awg connector wire: Includes gold-plated connectors for reliable performance.
- Aluminum single arm servo horn: Adds durability, replacing cheap plastic alternatives.
- Blue aluminum servo ear guides: Included for additional rigidity, as an alternative to rubber grommets.
Stop wasting money on budget servos that fail when it matters most. Get ProTek and don’t look back.
Specifications
| Specification | Details |
|---|---|
| Servo Model | 160T |
| Recommended Application | 1/12 to 1/10 scale Surface |
| Operating Voltage | 4.8V - 7.4V |
| Operating Temperature | 14° to 140°F (-10° to +60°C) |
| Operating Speed @ 6.0V | 0.08/60° sec |
| Operating Speed @ 7.4V | 0.06/60° sec |
| Dynamic Torque @ 6.0V | 216 oz-in (15.5 kg-cm) |
| Dynamic Torque @ 7.4V | 274 oz-in (19.7 kg-cm) |
| Motor Type | High Efficiency Coreless Motor |
| Output Shaft | 25 Tooth |
| Gears | Metal |
| Weight | 54.5g |
| Pulse/Frequency | 1520µs / 333hz |
| Dimensions | 39.5 x 20 x 30.3mm |
| Length (Bottom to Mount) | 19.10mm |
Why Choose ProTek R/C?
ProTek R/C goes the extra mile to ensure durability and performance. Unlike budget servos with flashy specs but poor performance, the ProTek R/C 160T includes thoughtful design elements like an aluminum servo horn and aluminum ear guides, ensuring it stands up to rigorous use.
Choose ProTek R/C for reliability, performance, and value.
