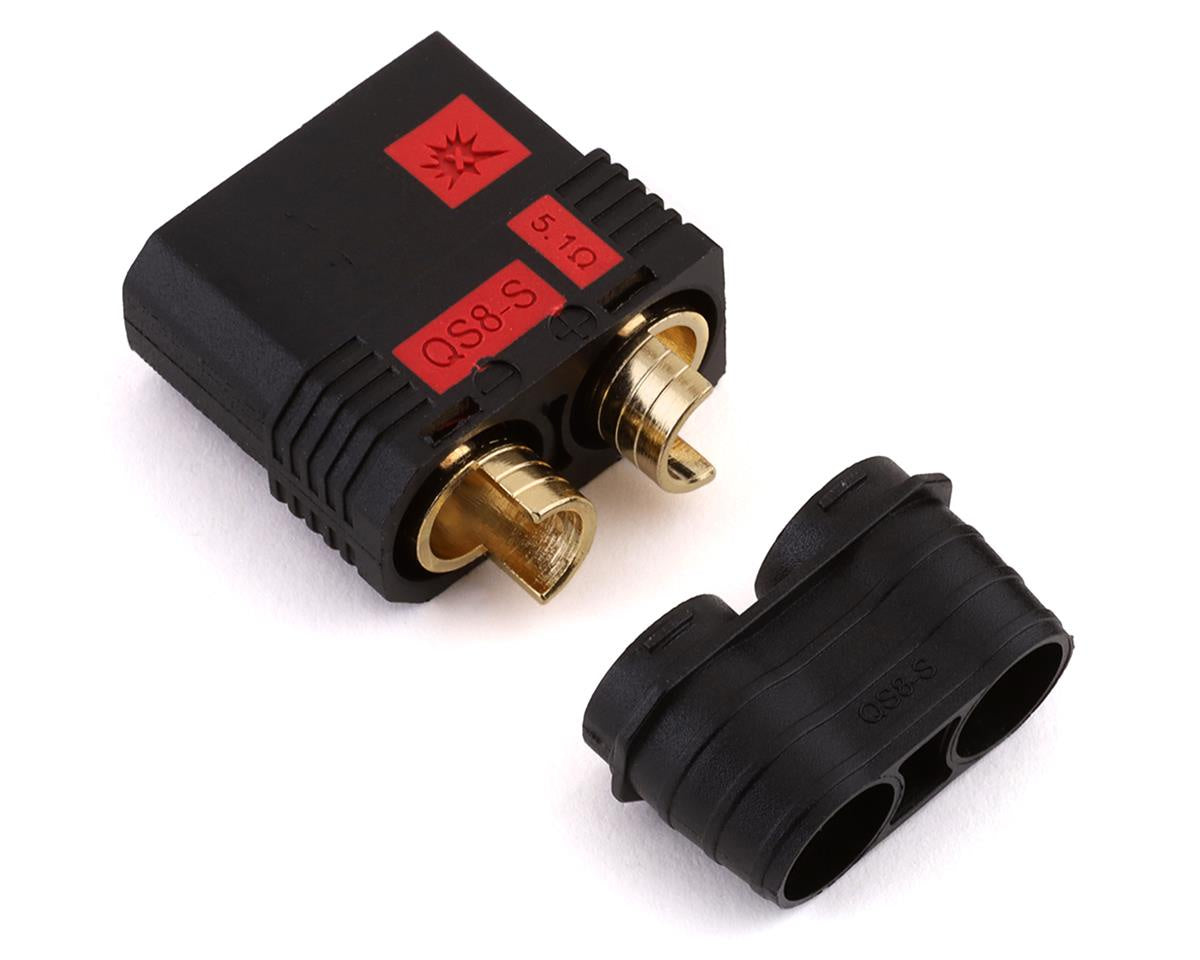

Proteck RC QS8 Anti-Spark Connector (1 Female) - PTK5072

ProTek RC QS8 Anti-Spark Connectors are a high-quality, high-current connector designed for high-voltage applications. These connectors can handle spikes in excess of 300 amps and feature an innovative anti-spark design that eliminates the dreaded "POP" when plugging in the battery, helping to extend the lifespan of the connector. High-voltage bashers, speed run enthusiasts, and pilots of all disciplines will appreciate the benefits of this advanced connector technology.

Key Features:

• Anti-Spark Technology: Increases the lifespan of the connector.
• Current Ratings: 110A constant and 300A peak current handling capability.
• 8.0mm Gold-Plated Brass Bullet: Reliable and efficient electrical connection.
• High-Voltage Compatibility: Ideal for a wide range of high-voltage applications.
• Durable Housing: Made from a nylon/fiber composite for long-lasting performance.
• Clean Installation: Includes a plastic wire cap to cover soldered connections, eliminating the need for heat shrink.

Specifications:

• Connector Diameter: 8.00mm
• Metal Material: Gold-plated brass
• Plastic Material: Fiber nylon composite
• Flame Retardant Rating: UL94 V2
• Temperature Range: Up to 200°C
• Rated Voltage: 600V DC
• Continuous Current: 110A
• Peak Current: 300A
• Weight: 20g each (40g for male + female set)
• Length: 37.5mm with end cap
• Width: 28mm
• Total Length When Connected: Approximately 70mm (male & female with end caps)
• Max Wire Gauge: 6awg

Package Includes:

• (1) QS8 Female Anti-Spark Connector
• (1) Wire Cap

NOTE: The T-style connector shown in photos is for size reference only and is not included.
