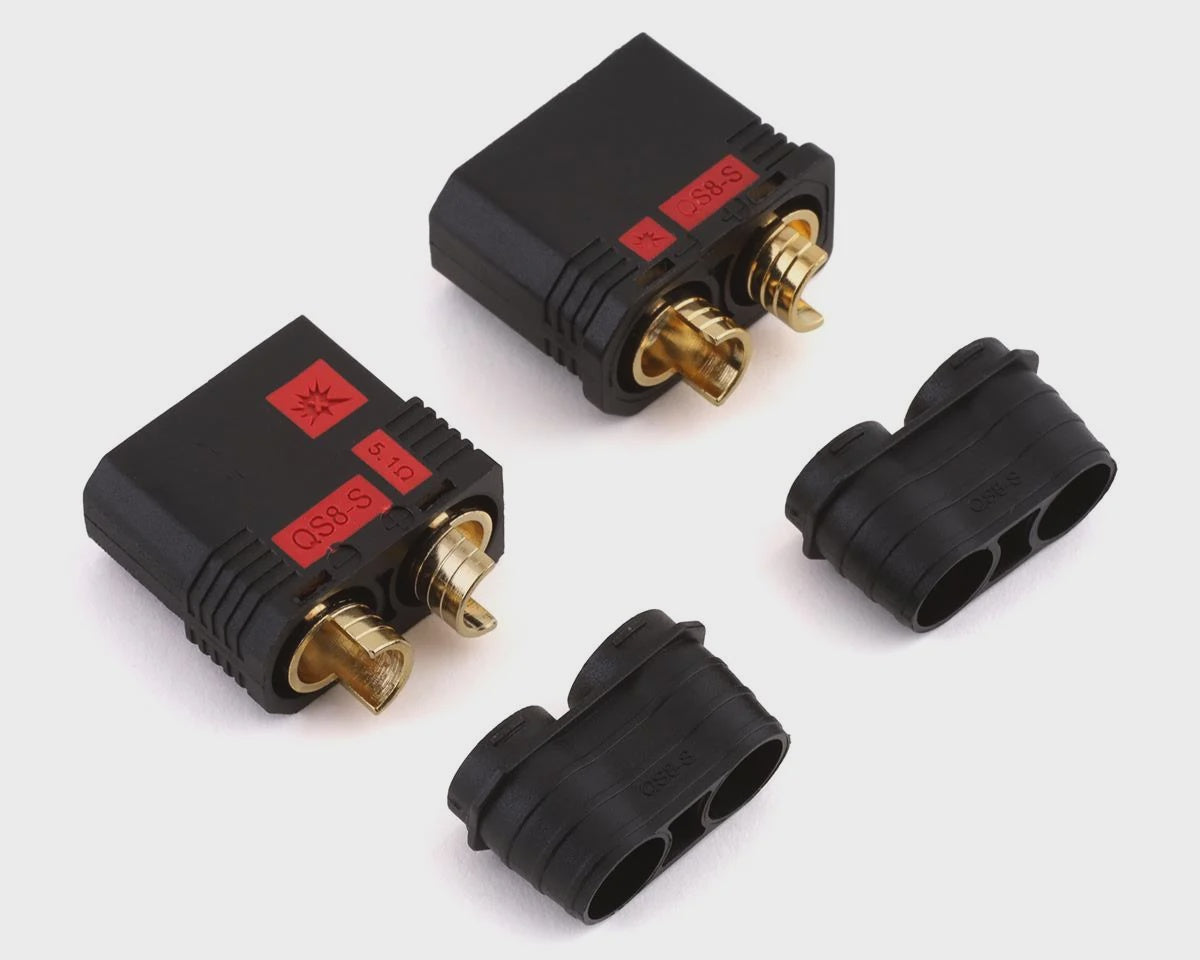

Proteck RC QS8 Anti-Spark Connector (1 Male/1 Female) - PTK5070

ProTek RC QS8 Anti-Spark Connectors are high-quality, high-current connectors designed for high voltage applications. These connectors can handle spikes exceeding 300 amps, and their anti-spark design eliminates the dreaded "POP" when plugging in the battery, helping to extend the connector's lifespan. Whether you're a high voltage basher, speed run enthusiast, or pilot, this advanced connector technology is a game-changer.

Key Features:

• Anti-Spark Technology: Increases the lifespan of the connector.
• High Current Capacity: 110A constant / 300A peak current rating.
• Durable Design: 8.0mm gold-plated brass bullets and nylon/fiber composite housing.
• Versatile Applications: Ideal for all high-voltage setups.
• Clean Installation: Includes a plastic wire cap to cover soldered connections, eliminating the need for heat shrink.

Note: The T-style connector shown in photos is for size reference only and is not included.

Specifications:

• Connector Diameter: 8.00mm
• Metal Material: Gold-plated brass
• Plastic Material: Fiber nylon composite
• Flame Retardant Rating: UL94 V0
• Temperature Range: 200°C Max
• Rated Voltage: 600V DC
• Continuous Current: 110A
• Peak Current: 300A+
• Weight: 41g (Male + Female Set)
• Total Length: Approx. 70mm (Male & Female with End Cap)
• Width: 29.5mm
• Max Wire Gauge: 6awg

Package Includes:

• (1) QS8 Female Anti-Spark Connector
• (1) QS8 Male Anti-Spark Connector
• (2) Wire Caps

The QS8 connector combines durability, efficiency, and ease of use, making it a must-have for demanding high-voltage applications.
