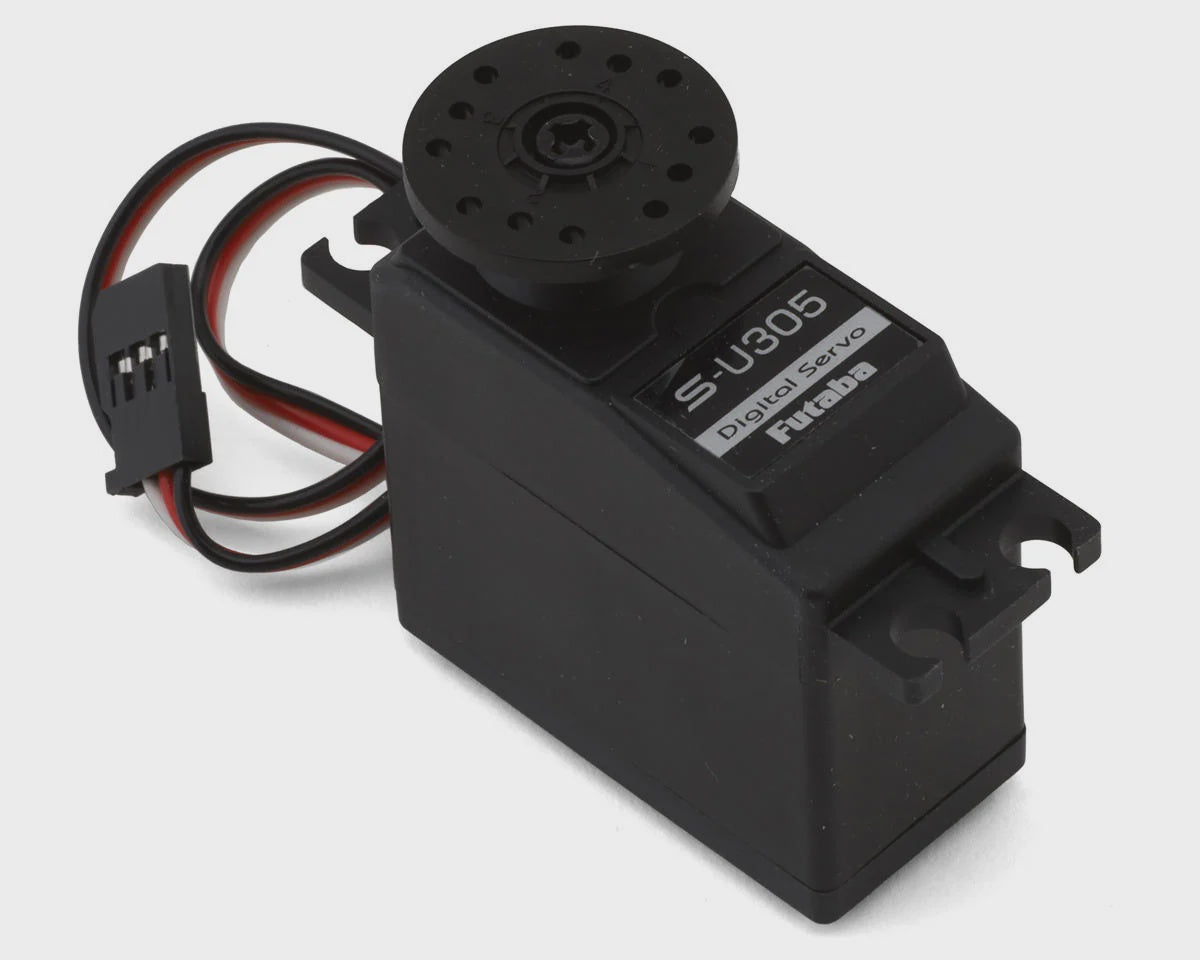

S-U305– Standard Digital Airplane/Car Servo (No S.BUS)

Specifications

SPEED

• 0.18 sec/60° at 6.0V
• 0.23 sec/60° at 4.8V

TORQUE

• 8.9 kgf/cm at 6.0V / 123.6 ozf/in at 6.0V
• 7.1 kgf/cm at 4.8V / 98.6 ozf/in at 4.8V

SIZE

• 40 mm x 20 mm x 38.1 mm
• 1.57 in x 0.79 in x 1.50 in

WEIGHT

• 46.5 g
• 1.64 oz

Input Pulse and Output Angle

• Input pulse: (2,120us, 920us)
• Comparable output angle: CCW 60 degrees, CW 60 degrees
