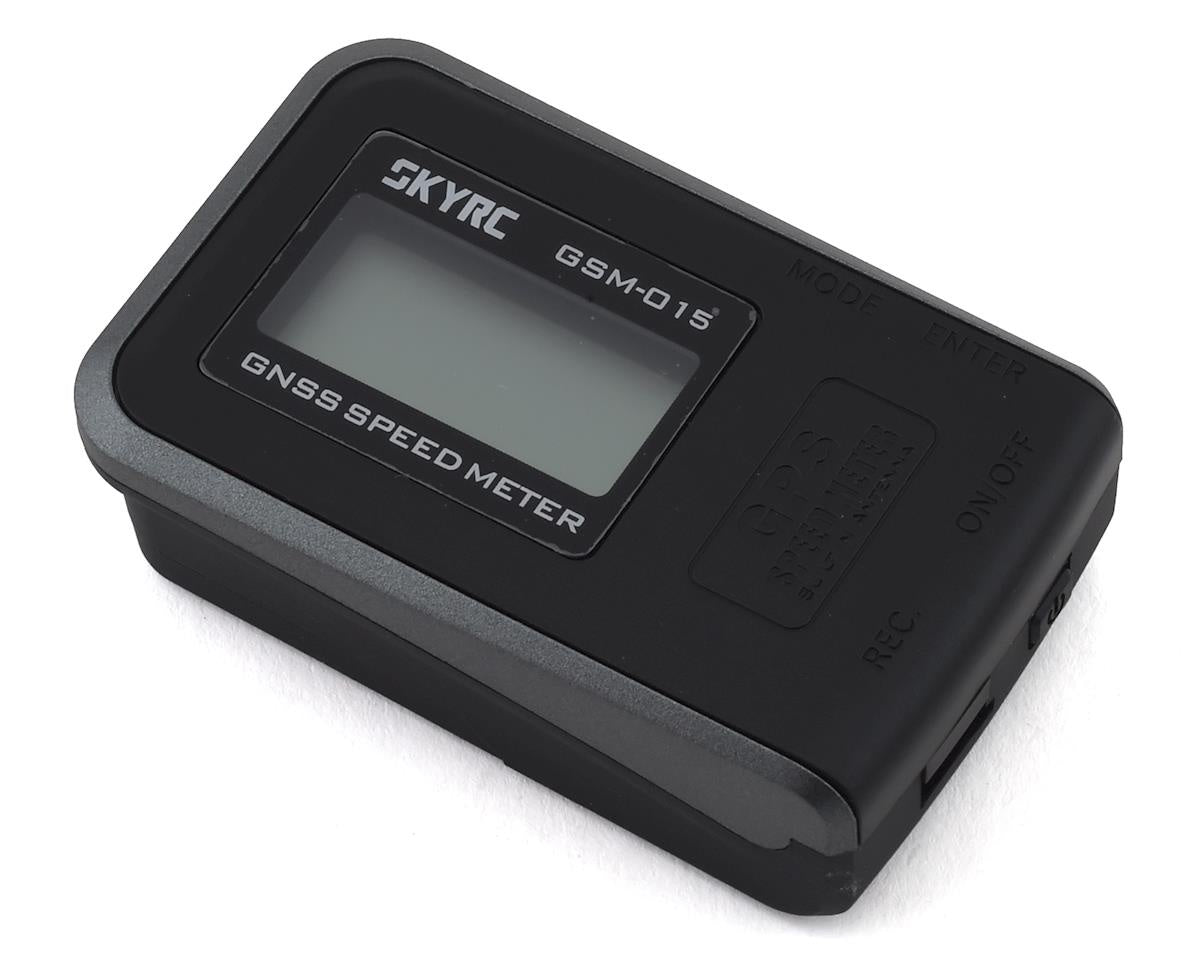

SkyRC GPS Speed Meter & Data Logger

GPSLOGGER SOFTWARE

Use SkyRC application software “GPS Logger” to transfer the logged data to PC and easily export the logged data to “Google Earth”.

GpsLogger Software Application:

• Transfer the logged data to PC and show the track data on Google Earth
• Save the logged data to PC
• Select the language between English and Chinese
• Change Metric and Imperial system of measurement
• GPS update rate selection
• Firmware upgrade

Features:

• Compact and easy to carry
• Speed meter with top speed memory
• Peak altitude memory
• GPS Coordinator
• Built-in 4M flash (recording time: 6 hours)
• UTC timestamp logged for each track point
• Built-in rechargeable LiPo battery 200mAh (Operating time: 150 minutes)
• Support both Metric and Imperial system of measurements
• PC link for data logging & Google map
• Firmware upgrade-able

Specifications:

• Receiver: L1, 1575.42 MHZ
• Frequency: 1.023 MHZ
• Update frequency: 1 Hz
• Antenna type: Built-in
• Satellite signal reception sensitivity: -159dBm
• Dimensions: 65.7 x 39.6 x 20.8 mm
• Weight: 41 g
• Operating temperature: 0° to +50°
• Storage temperature: -10° to +60°
• Operating humidity: 5% to 90%
