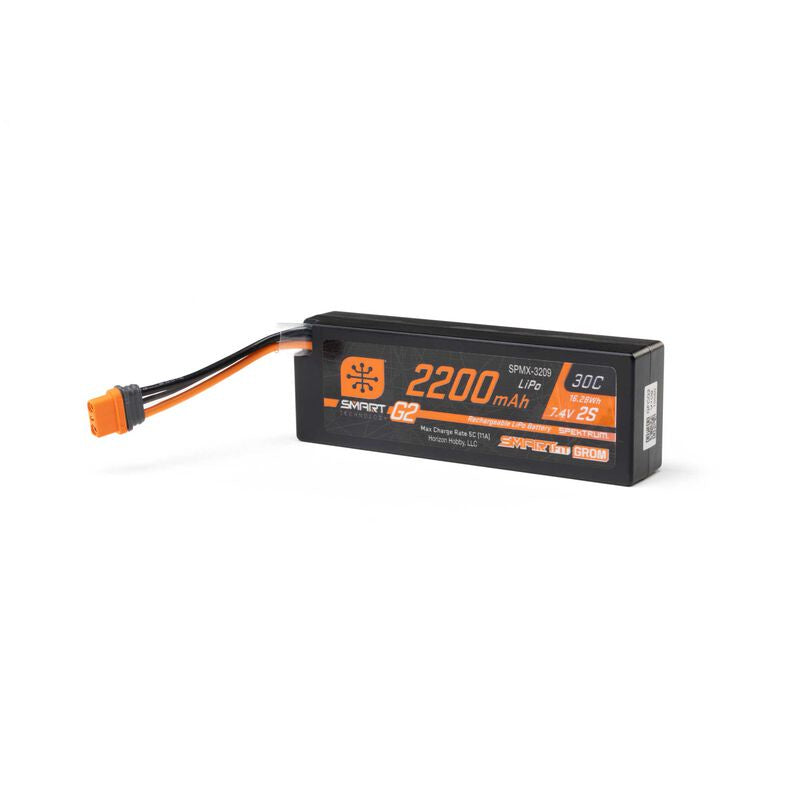

Spektrum 2S 7.4V 2200mAh 30C G2 SmartFit Grom Hard Case LiPo IC2

Overview

The Spektrum™ 2S 7.4V 2200mAh 30C G2 SmartFit Grom Hard Case LiPo IC2® Battery is specifically crafted for the ARRMA® GROM 1/14 to 1/18 scale mini RC lineup. Its unique size, shape, and 30C rating are tailored to meet the demands of these vehicles.

With Spektrum Smart LiPo batteries, you benefit from incredible features and performance. The Auto Charge functionality allows Spektrum Smart Chargers to recognize the battery's charging parameters and initiate safe, accurate charging automatically upon connection. Additionally, when connected to a Smart charger, the battery's unique parameters and health data are uploaded from the Smart memory microchip integrated into the battery.

Through the charger, users can view and set preferences, such as charge rates, ensuring that charging is as simple as pressing the charger "Start" button. Smart technology handles the rest, making this battery a reliable and user-friendly choice.

Key Features of Spektrum Smart LiPo Batteries

Spektrum Smart LiPo Batteries store unique data, including:

• Battery Type
• Battery Capacity
• Battery C Rating
• Individual Cell Voltage
• Battery Temperature
• Charge/Discharge Cycles

Additionally, these batteries maintain an error log, recording incidents such as overheating, over-discharging, and overcharging. This data helps ensure the battery is suitable for your application.

Smart Battery Features:

• Automatically uploads charge parameters to a Spektrum Smart Charger, simplifying the charging process.
• Customizable charge rates to maximize the potential of faster charge ratings.

Benefits

• Simpler and safer to use
• Integrated microchips store unique parameters for each battery
• Smart discharge automatically reduces batteries to a safe voltage
• Save time and hassle while improving battery life
• No soldering required — equipped with IC2 connector

Product Specifications

General Details:

• Application: Surface
• Battery Type: LiPo (3.7V per cell)
• Battery Voltage: 7.4V
• Capacity: 2200mAh
• Discharge: 30C
• Hard Case: Yes
• Technology: Smart

Safety Features:

• Charge Protection Circuitry: Yes
• Low Input Voltage Protection: Yes
• Over Current Protection: Yes
• Thermal Protection: Yes

Connectors:

• Battery Balance Connector: G2 Smart
• Connector Type: IC2
• Output Connector: IC2

Dimensions:

• Product Height: 0.79" (20 mm)
• Product Length: 3.94" (100 mm)
• Product Width: 1.34" (34 mm)
• Product Weight: 4.09 oz (116 g)

Additional Features:

• Maximum Charge Rate: 5C
• Maximum Continuous Discharge Rate: 30C
• Number of Cells: 2
• Watt Hours: 16.28 Wh
• Programmable: Yes
• Selectable Charge Rate: Yes

Limitations:

• Reverse Polarity Protection: No
• Short Circuit Protection: No

This battery is a perfect blend of functionality, safety, and ease of use, making it an excellent choice for RC enthusiasts.
