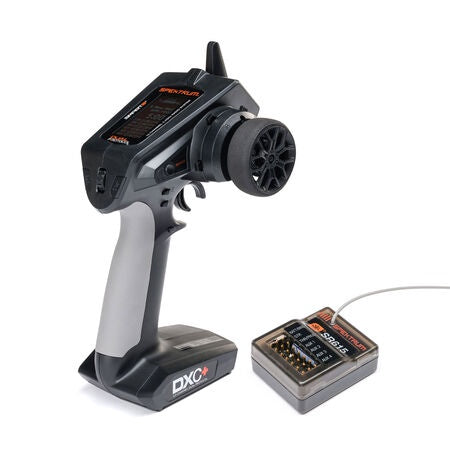

Spektrum DXC+ 12-Channel DSMR+ Transmitter with SR615 Receiver
Spektrum DXC+ 12-Channel DSMR+ Transmitter with SR615 Receiver
The DXC+ is the savvy solution for bashers, boaters, and scalers who want a staggering list of advanced features that includes the virtually unlimited possibilities 12-channel control offers.
In The Box
- (1) Spektrum™ DXC+ 12-Channel DSMR+ Transmitter
- (1) Spektrum™ SR615 Receiver
- (1) Product Manual
Needed to Complete
- (4) AA Transmitter Batteries
Spektrum DXC+ 12-Channel DSMR+ Transmitter Radio Overview
The DXC+ is the savvy solution for bashers, boaters, and scalers who want a staggering list of advanced features that includes the virtually unlimited possibilities 12-channel control offers.
Built around frequency agile DSMR+® 2.4GHz technology, you can use the DXC+ in any type of surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb.
The DXC+ includes new upgrades and features that make it the ideal upgrade transmitter for RTR vehicles. Upgrades include:
- Dual Protocol
- DSMR+
- 12 proportional channels
- USB for easy firmware updates
- Compatibility with the VRC Racing Simulator
Spektrum DXC+ 12-Channel DSMR+ Transmitter Radio Features
- Dual Protocol (DSMR/SLT) Compatibility
- Twelve fully proportional channels with user-friendly steering and throttle mixes
- Frequency-agile, Spektrum® DSMR+® 2.4GHz technology
- Backlit LCD screen for better visibility
- USB for firmware updates and VRC compatibility
- Spektrum Smart Technology ready
- Program and fine-tune compatible AVC® receivers
- 20-model memory
- Smooth, dual-ball bearing precision
- Non-slip rubber grips
- Back button makes navigating the interface more intuitive
- Steering mix, 4-wheel steering mixing, plus one assignable Mix
- Bind-progress screen displays status and frame rate
- Compatible with DSMR and DSM2 receivers
- EN328 compatible
Product Specifications
| Feature | Details |
|---|---|
| Antenna Length | Integrated |
| Application | Surface cars, trucks, boats |
| Audio | Alarms and Tones |
| Band | 2.4GHz |
| Bearing | Dual-ball bearing |
| Bind Method | Bind Button |
| Bushing Or Bearing | Bearing |
| Channels | 12 |
| Completion Level | Transmitter and Receiver |
| Connector Type | USB |
| Data Port | Yes |
| Failsafe | Yes |
| Frame Rate | 11ms, 22ms |
| Input Voltage | 3.5–9.6V |
| Model Memory | 20 |
| Modulation | DSMR+ / DSMR |
| Operating System | Raceware |
| Product Height | 9.88" (251 mm) |
| Product Length | 6.29" (160 mm) |
| Product Weight | 402g |
| Product Width | 4.8" (122 mm) |
| Programmable | Yes |
| Range | Full |
| Receiver | Included |
| Technology | DSMR Protocol, DSMR+, Smart, SLT Protocol |
| Telemetry | Yes |
| Transmitter (Tx) Battery Type | AA Dry Cell |
