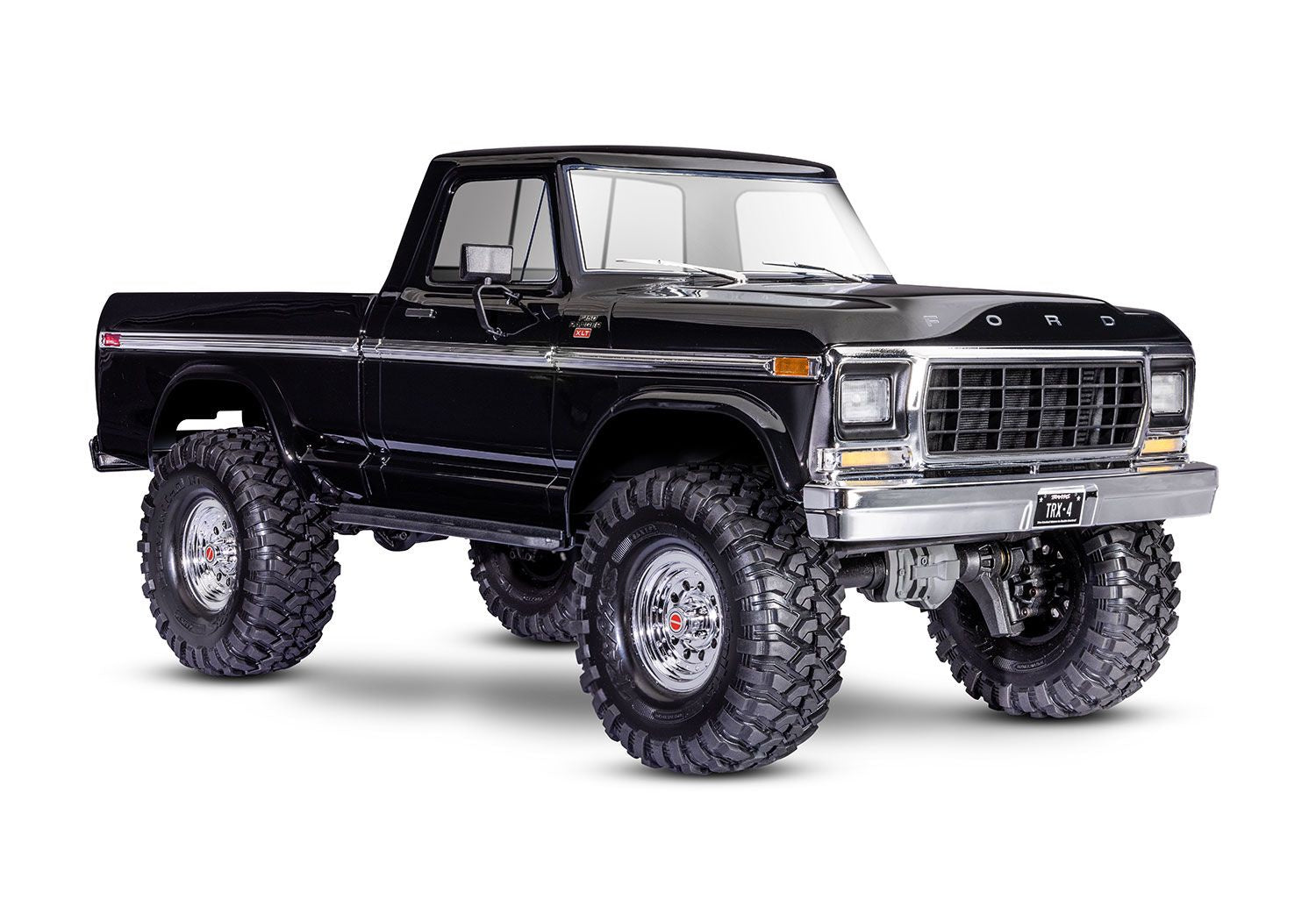

Traxxas 92144-4 TRX-4 Ford F-150 - Black

Quick Highlights

• Authentic Scale Details and Realism
• Painted Bodies with Clear Windows
• Scale 1.9" Canyon Trail™ Tires on Factory Wheels
• Portal Axles
• Single Speed Transmission
• Spool-Locked Axles
• TQ Radio System
• Lighter Weight, Low-CG Performance

---

Key Features

Officially Licensed 1979 Ford® F-150® Ranger XLT Body

• Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers.
• LED-ready headlights and tail lights.
• Authentic decals.
• Full Nylon composite wheel wells and floor pans.

Clipless Body Mounting

• Clipless design for smooth body appearance.
• Rugged internal body cage for added rigidity.
  • Body details mount directly to the internal frame.

Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control

• Fully waterproof design.
• Five drive profiles:
  • Sport Mode — forward / brake / reverse.
  • Race Mode — forward / brake / no reverse.
  • Training Mode™ — 50% forward / 100% brake / 50% reverse (patented).
  • Trail Mode — forward / brake / reverse with trail-tuned drag brake in neutral.
  • Crawl Mode — forward / instant reverse with no neutral and 100% hill-holding brake.
• Traxxas EZ-Set® one-button setup.
• Large, efficient heat sink.
• Wide voltage latitude: 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V).
• Two-stage low voltage protection (LVD).

Titan® 550 Motor

• Powerful Titan 21T reverse rotation motor with internal cooling fan.
• Precise preset gear mesh adjustments.
• Motor retention separate from gear mesh.

---

Performance and Design

TQ™ 2.4 GHz 2-Channel Radio

• Ergonomic transmitter with internal antenna.
• Traxxas 6519 3-channel micro receiver with fail-safe security.
• Patented o-ring sealed watertight receiver box keeps the receiver dry.

Extended Wheelbase Chassis

• Long 336 mm wheelbase for improved stability.
• Full-length 1.5 mm thick steel frame rails.
• Adjustable bumpers and rugged rock rails.
• Integrated wire routing clips in frame rails.

Innovative Battery Compartment

• Hinged battery strap for quick and easy battery access.
• No pins to lose.
• Accommodates different height batteries.
• Accepts full-size long battery packs.
• Integrated compartment for smaller 1/16 scale batteries (with optional strap).

Portal Axles

• Increase ground clearance.
• Eliminate torque twist.
• Steel gears.
• Improve axle geometry and reduce strain on driveshafts.

Driveline

• Full-time shaft-driven 4-wheel drive.
• Tough 6 mm stub axles.
• Steel front CV driveshafts.
• Hardened steel rear axle shafts.
• Spool-locked front and rear axles.
• Steel gear transfer case.

---

Mechanical Components

Transmission

• Single-speed with steel gears.
• Dual horizontal shafts.
• Twin friction plate slipper clutch.
• Easily removed for servicing.

Steering

• Chassis-mounted 2075X metal gear digital servo.
• Superior 45° steering angle.
• Direct steering (no servo saver).
• Steering geometry corrected for bump steer.

Suspension

• Front: 3-link with panhard.
• Rear: Triangulated 4-link.
• Heavy-duty rod ends with steel hollow balls.
• 5 mm diameter steel link rods with 4 mm threaded ends.

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks exclusive to TRX-4 chassis.
• Silver-anodized aluminum bodies.
• Threaded bodies with collars for easy ride height adjustment.
• Silky-smooth damping for tough trails.
• O-ring cap seal and dual x-ring shaft seals.

Wheels and Tires

• 1.9″ chrome mag wheels with hub inserts.
• Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts.
• Trail-tuned S1 rubber compound.
• 12 mm steel hex.

---

Additional Features

• Sealed Ball Bearings
• Hex Hardware with Rust-Resistant Black Oxide Coating
• Requires Battery and Charger (Sold Separately)

---

Specifications

• Name: TRX-4 Ford F-150
• Type: Trail Truck / Crawler
• Skill Level: 1
• Chassis: Extended steel ladder frame
• Scale: 1/10
• Weight: 5.79 lb (2.63 kg)
• Length: 22.30 inches (566 mm)
• Width: 9.78 inches (249 mm)
• Height: 9.47 inches (241 mm)
• Track: 9.78 inches (249 mm)
• Wheelbase: 13.23 inches (336 mm)
• Center Ground Clearance: 3.14 inches (80 mm)
• Driveline: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Spool (no differentials)
• Gear Pitch: 32 pitch
• Steering Servo: 2075X metal gear, digital high-torque waterproof
• Radio System: TQ™ 2.4 GHz 2-channel transmitter
• Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm
