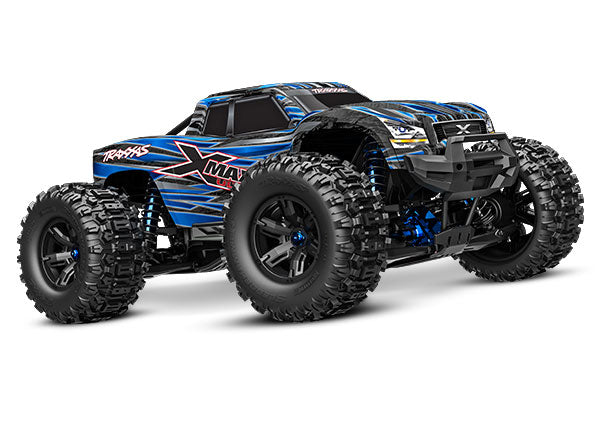

Traxxas 77097-4 X-Maxx Ultimate - Blue

Features

High Performance Aluminum Upgrades

• 6061-T6 aluminum components:

  • C-hubs
  • Steering blocks
  • Rear hub carriers
  • Differential housings
  • Motor mounts

VXL-8s™ Waterproof Electronic Speed Control

• 8s LiPo compatible
• Built-in cooling fan
• Machined heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights

Velineon® 1200XL Brushless Motor

• 4-pole 1275 Kv
• 5 mm output shaft
• Aluminum slip-on heat sink
• Dual motor cooling fans

Performance and Control

• 50+ MPH with Two 4s LiPo Batteries and Optional Gearing (sold separately)
• Traxxas Stability Management® (TSM):
  • Helps prevent spinouts and loss of control
  • Adjustable from off to 100% assistance via transmitter

TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module

• Factory-installed telemetry sensors
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

Clipless Body Mount System

• Quick one-handed installation and removal
• Pivoting rear latch mechanism
• Eliminates body posts and clips
• Reinforced for extra protection

Driveline and Chassis

8s Driveline

• Machined, hardened steel pinion and spur gear
• Full-time shaft-driven 4-wheel drive
• Heavy-duty steel CV driveshafts with laser etching
• Beefed-up steel differential output cups
• Splined aluminum center driveshaft
• Machined aluminum stub axles
• Torque-Biasing Center Drive™ absorbs shocks and distributes power
• 24 mm splined wheel hexes
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears

Fixed Motor Mounting System

• Rigid aluminum motor mounts
• Preset gear mesh adjustments
• No manual adjustments required
• Motor retention separate from gear mesh

Heavy-Duty Modular Composite Chassis

• Interlocking front and rear bulkheads
• Motor mounts to rear bulkhead to eliminate gear crunching flex
• Easy to service and access components
• Driveline sealed in chassis to keep out dirt and grit

Snap-Lock Battery Retention System

• No body clips or hook and loop straps
• Battery hold-downs pivot for easy access
• Adjustable for battery size
• More secure than conventional retention systems
• Integrated into chassis top brace for improved battery tray and chassis stiffness

Bumpers

• Front energy-absorbing rubber impact bumper

• Lower front and rear skids for impact and abrasion resistance

• Integrated nerf bars for side impact resistance

• Large, dual-diameter wheels

Steering and Suspension

Steering

• 6061-T6 aluminum steering components:
  • Steering bellcranks
  • Double-shear aluminum servo horn
• 2085RL high-output metal-gear steering servo:
  • 650 oz-in torque at 6.0 volts
  • 0.13 sec/60° at 6.0 volts
• Heavy-duty servo saver spring

Suspension

• TUBES 7075-T6 Aluminum front toe links
• Double shear strength at all critical suspension points
• High-strength steel suspension pins throughout
• Suspension pin retainers won’t loosen or “back-out”
• C-hub and steering block geometry maximizes steering angle
• Adjustable roll center
• Steel upper and lower tie bars
• Full contact sealed bearings used in exposed locations

Aluminum GTX™ Shocks

• Machined aluminum threaded body
• Extra-large bore and capacity
• Ultra-smooth TiN-coated 5.2 mm damper shafts
• Lower seal cartridge with integrated wiper seal combination
• Adjustable aluminum upper spring retainer
• Aluminum shock caps with pivot balls
• Fixed shock locations
• Bolted lower spring perches

Wheels/Tires

Massive 8.4″ Sledgehammer® Belted Tires

• Virtually eliminates ballooning at high speeds
• Open tread block design
• 2-piece foam insert
• High-strength glue and bead design
